SCYLLA V2 Mosfet by Jefftron
SCYLLA V2 Mosfet by Jefftron
| Minimum Cart Quantity | Discount | Wholesale Price |
|---|
| Minimum Cart Amount | Cart Discount |
|---|
Couldn't load pickup availability
Scylla V2 Mosfet utilizes both optical and magnetic sensors to control your system.
Built in Wireless Communication via Bluetooth APP for iOS / Andriod Users!

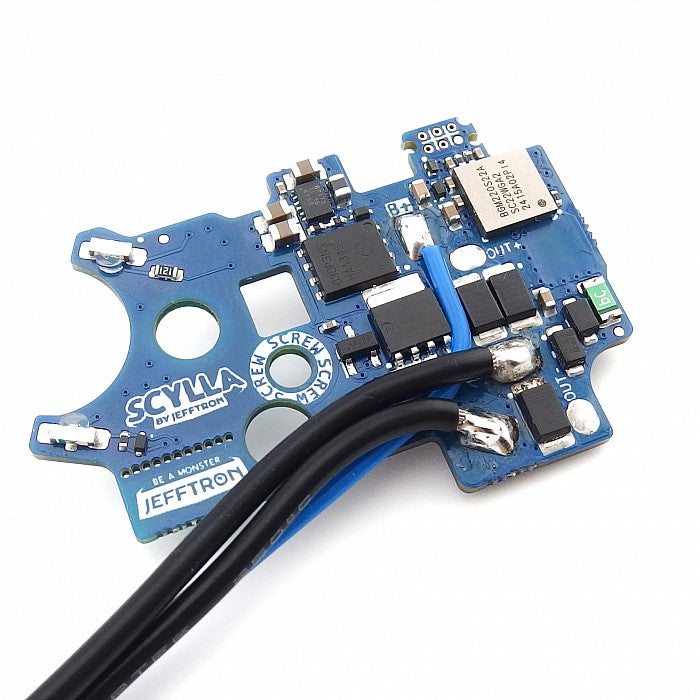

This is a single board mosfet that utilizes a magnetic sensor to be installed on your trigger. The Magnetic sensor is used for very precise programming of the electronic trigger break and re set.
** When Pairing this mosfet with Brushless motors, when Brushless motor mode is enabled, if your having misfeeding and erratic nozzle placement, do this :
Disable Brushless Motor mode - Enable Low Level AB 5% and test. This will solve 90 Percent of brushless feeding problems when pairing this mosfet with brushless motors. **
Included are
- Scylla Mosfet
- 2x Wire Holder Clips
- Magnetic Trigger Adapter
- Mounting screw Sticker Book
-
Jefftron Key Chain Dog Tag
Key Features
TRIGGER SENSITIVITY

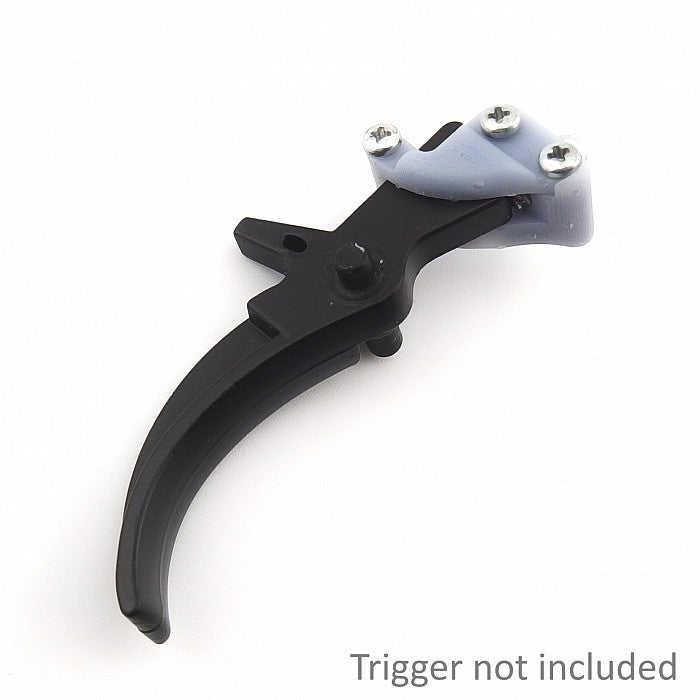

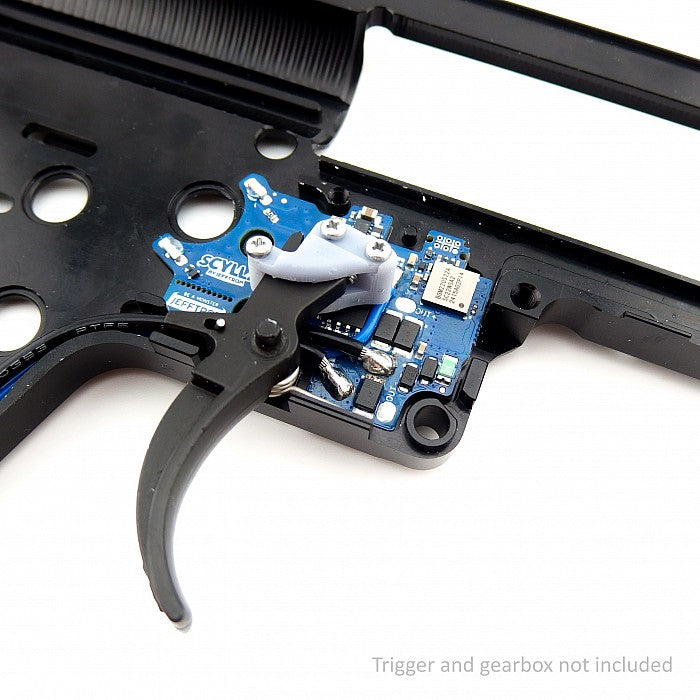

Thanks to the magnet adapter, it is possible to adjust the trigger sensitivity from the app.
The adapter can be used on standard V2 triggers.
For use with Jefftron Triggers, you will need to buy a Jefftron Trigger Adapter for Scylla
FIRE MODES
This feature allows you to configure firing modes and assign the mode to the position of the firing switch on the weapon. The configurable firing modes available on the Scylla are:
- SAFE: no responding on the trigger pull.
- Semi: it fires a single shot per trigger pull.
- Binary trigger: it fires a single shot when the trigger is pulled and another single shot when it is released.
- Burst: gun shoot burst per trigger pull.
- Burst/Full: short trigger press fires burst, long trigger press makes auto fire.
- Full: gun makes auto fire until releasing trigger.
RATE OF FIRE REDUCTION
Whether you need to lower your cadence because your pitch has a RoF limit you are not HAVE or you need to diagnose a problem, Scylla eats you. With this feature, you can adjust your rate of fire between 40% and 100% via the app.
ACTIVE BRAKE
When you are using weak spring, inconsistency can occur when firing single shots, such as double burst fire in one trigger pull - the active brake solves this problem by braking the motor after each shot. You can set it in the application from 0 to 100%.
PISTON PRECOCKING
Piston precocking improves trigger response by leaving the piston in the rear position after each shot. This means that the motor does not have to retract and then release the piston each time it fires, it just releases the piston. It only works in SEMI mode. The intensity is set in the app from 0 to 80%.
ELECTRONIC FUSE
Protects the device in case of a short circuit on the wires to the motor.
LI-PO ALARM
Indication of low battery voltage. If the battery is discharged below a certain voltage, the weapon will emit an audible signal that the battery needs to be replaced. The app automatically detects the battery, or you can choose the correct battery type yourself.
STATISTICS

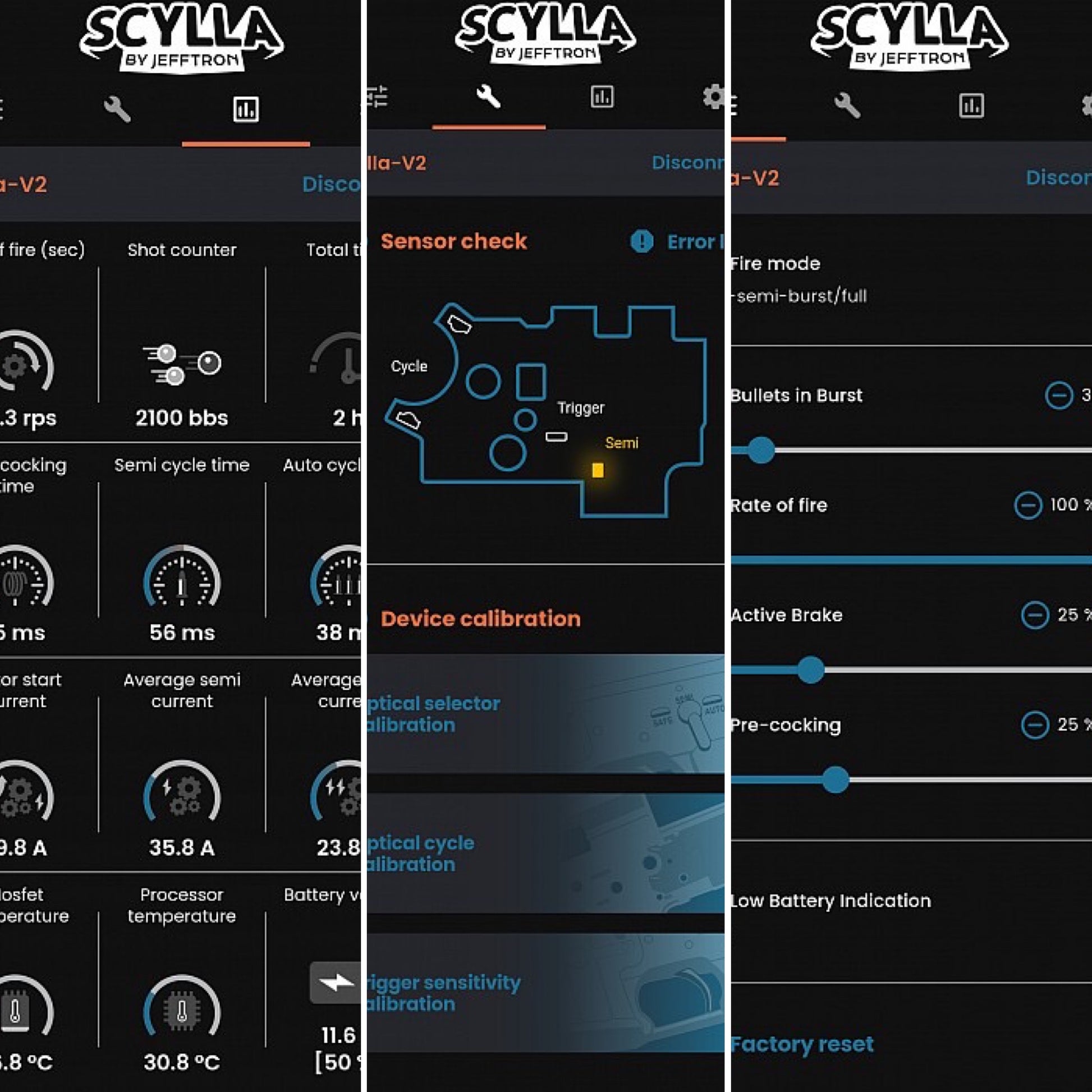

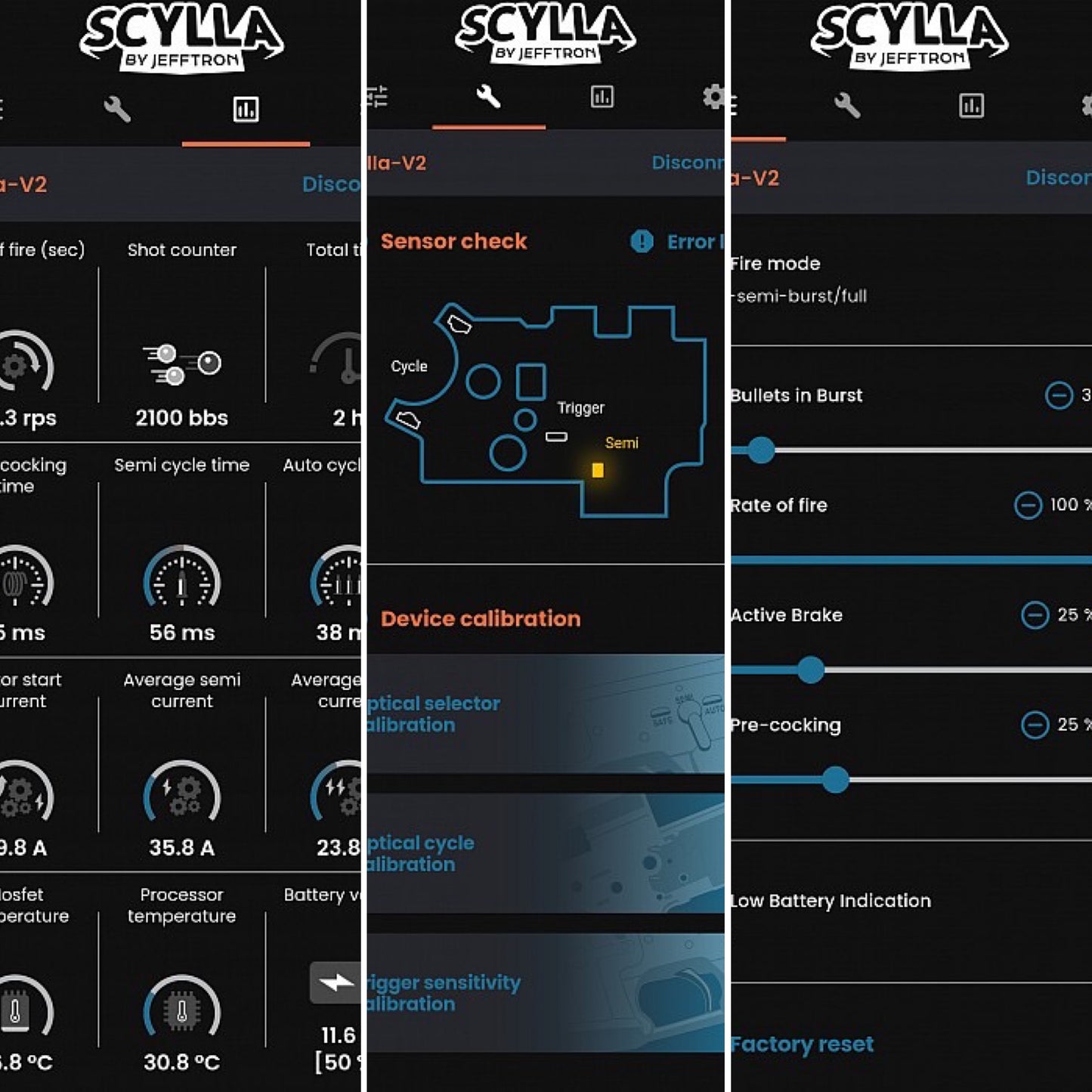

The app offers a lot of stats and indicators that allow you to get the most out of your weapon.
Among the most important are:
- Weapon rate of fire
- Total number of shots fired
- Cycle time
- Current during firing
- Temperature of the mosfet and processor
- Time how long the Scylla ran
- Battery voltage
USE WITH BRUSHLESS MOTOR
Scylla can be used with brushless motor (Real Deal Airsoft , Warhead, Option No. 1, etc.). Activate the function "Brushless motor" in the Leviathan & Scylla app and use all available options without any worries.
FEATURES

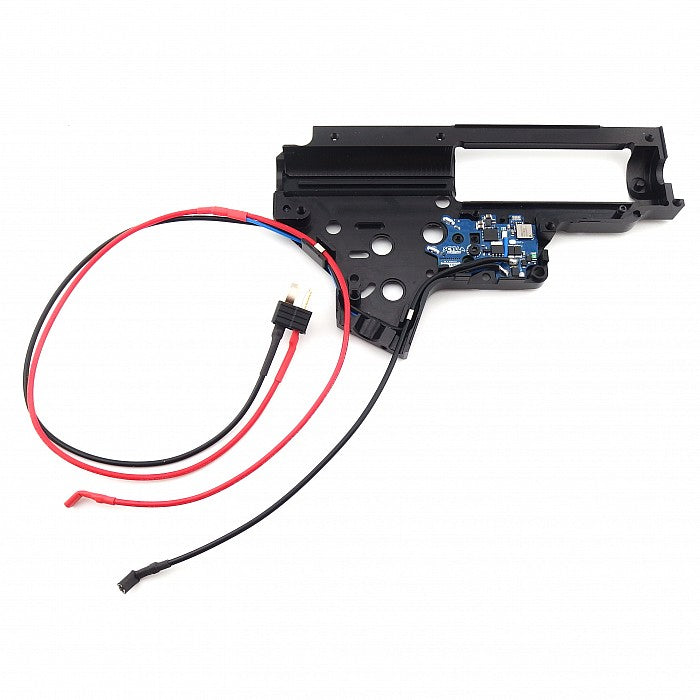

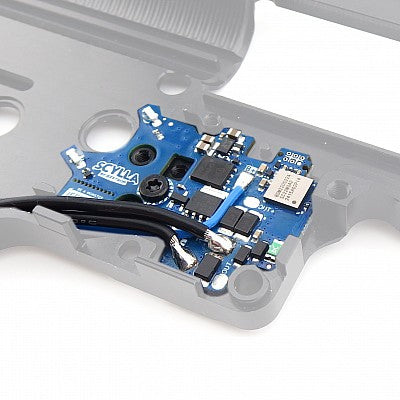

Easy installation into the gearbox.
Wrapped in lacquer to protect the device against water damage.
You can use a mechanical trigger stop with the Scylla, however it does not have to be used.

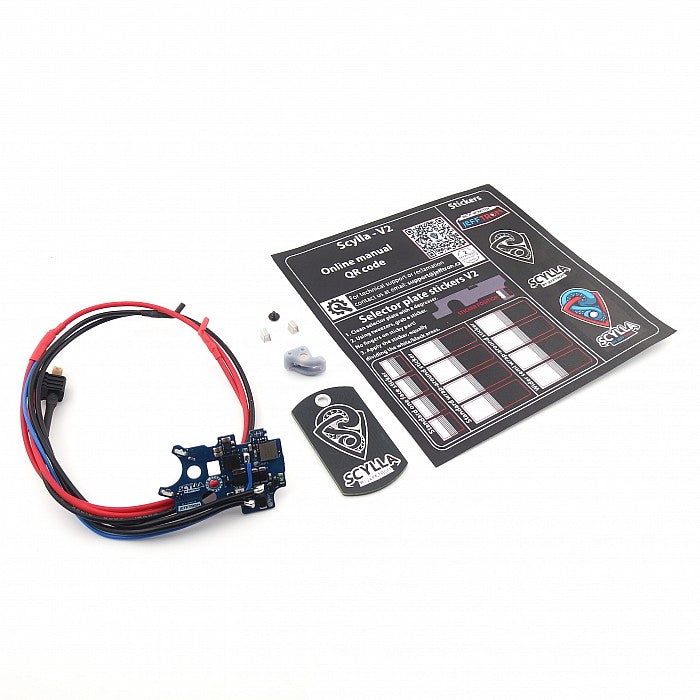

PACKING

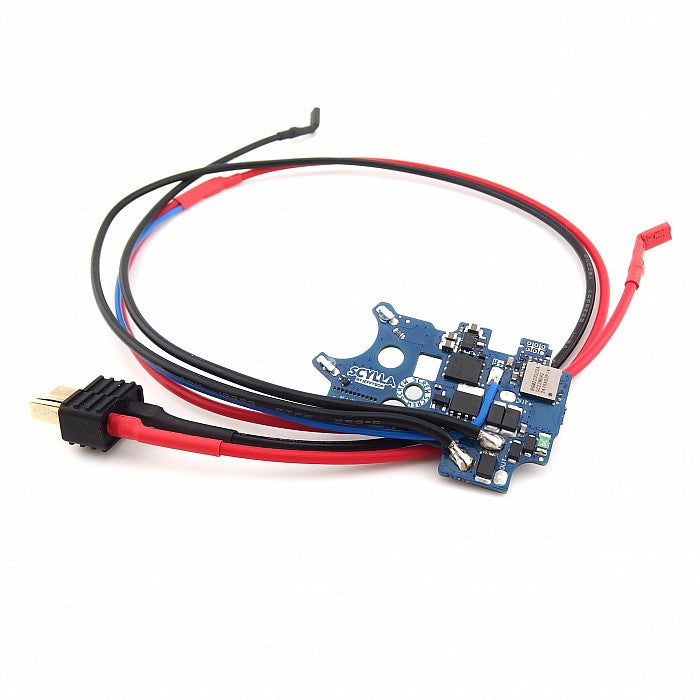

Scylla - V2 drop-in electronic module with wiring to stock with T-plug connector

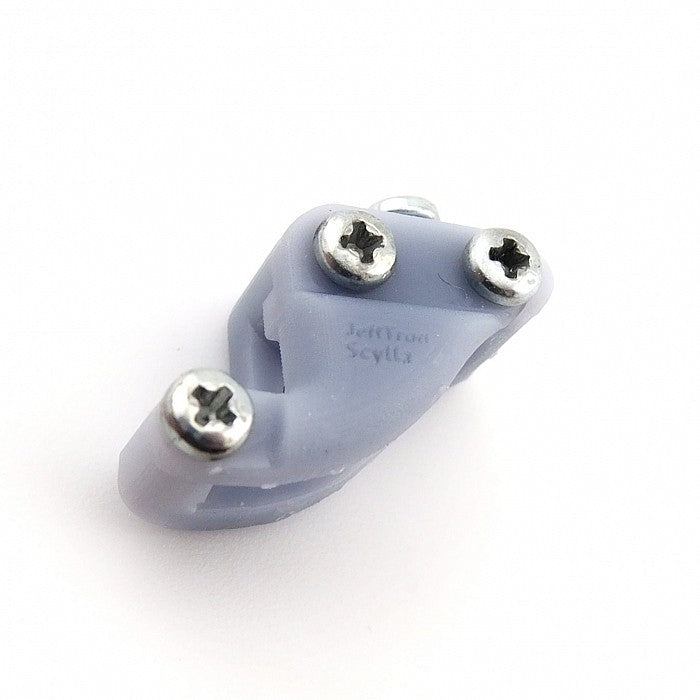

Adapter with magnet for standard trigger
Screw for securing device in the gearbox
2pcs wires holders
5x Scylla sticker
Dog Tag keychain
Online manual in English
Share
I come from installing Peruns and I’ve strayed away and used scylla’s. I love them when they are working. You can adjust settings easy with your phone easily, check stats, etc. But when they aren’t they are now just bricks sitting in their packaging.
One is broken out the gate, one I had all of sudden turned OTA and I had one where the Sector sensor was always on and I’ve tried factory resetting and checking if there were updates but no fix.
When they work I have to play with the settings to make sure it works and cycles properly where as the Perun I’ve never had to mess around the settings and it’s simply plug in the battery and shoot.
Honestly I’ll stay with Perun because I’ve had yet to have a problem when Installing them.
$240 down the drain on my end and It honestly sucks telling customers/friends their new ETU doesnt work just for them to spend more money on another unit or I have to make it up on my end.
Maybe it can be skill issue coming from me who knows, 🤷♂️.
I am a big fan of the perun hybrid but after using this indoors I had a lot of people confuse it for hpa with the build set up 🥹 it’s even hard for me to tell the difference between this and my hpa set up.
Compared to other mosfets the Scylla offers outmatched performance. The wiring is superb and thick compared to other mosfets at its price point. The Bluetooth app also provides significant tuning ability to trigger sensitivity, precook, and active breaking on the fly.
Having installed and played with other mosfets by both Jefftron and others it works as expected. It was a little touchy and interesting to get it setup correctly with a brushless motor but was nit overly complicated. About the only issue that I have had with it so far seems to be with it's bluetooth function as it likes to randomly disconnect from the app and sometimes afterwards doesn't reconnect right away and the app does not list it as online.
when you have wierd bugs like that look for a software update in the settings. Just turn brushless motor mode on in the settings and theres really nothing else to do. If your having double cycling disable brushless motor mode and enable 5% AB
