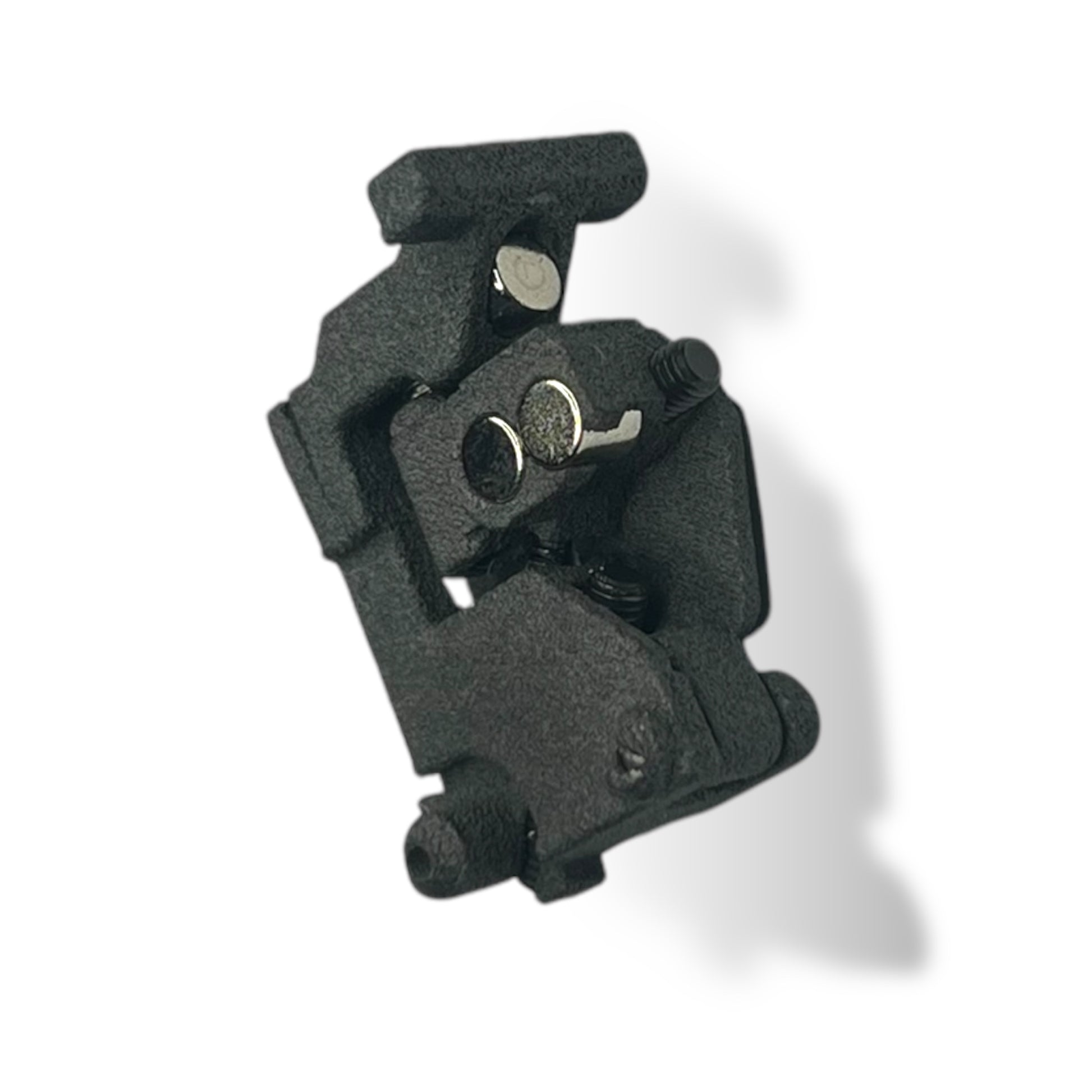

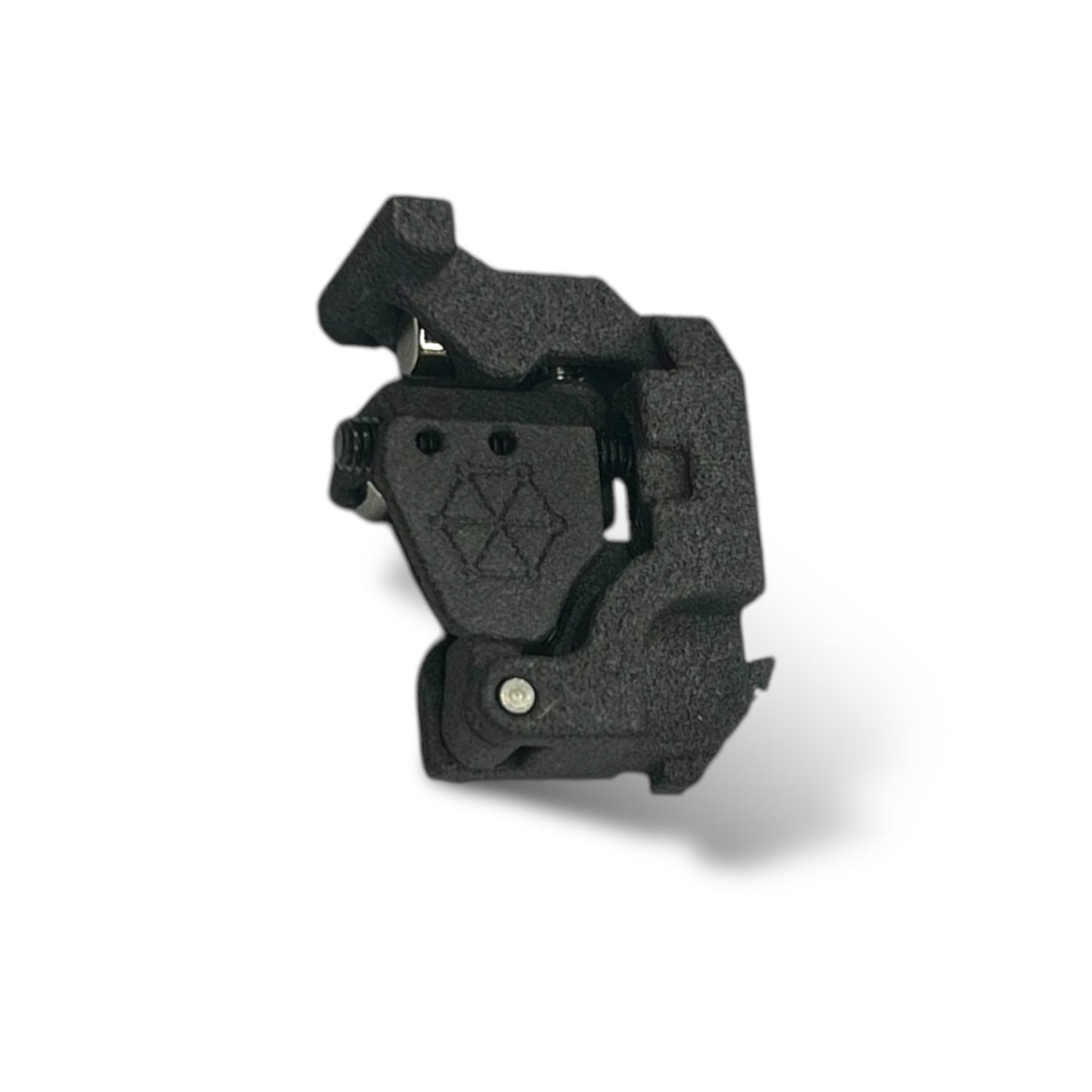

Perun Speeder Clicker V2

The Speeder Clicker by Perun aka the Speed Clicker as mentioned by Real Deal.

This clicker eliminates the use of your standard trigger return spring, has Pick up, Over travel and Trigger weight adjustability. Which means you can take a stock non adjustable trigger and wind up with a highly tuned, highly sensitive, low trigger travel, resulting in a super Hair trigger response and function.

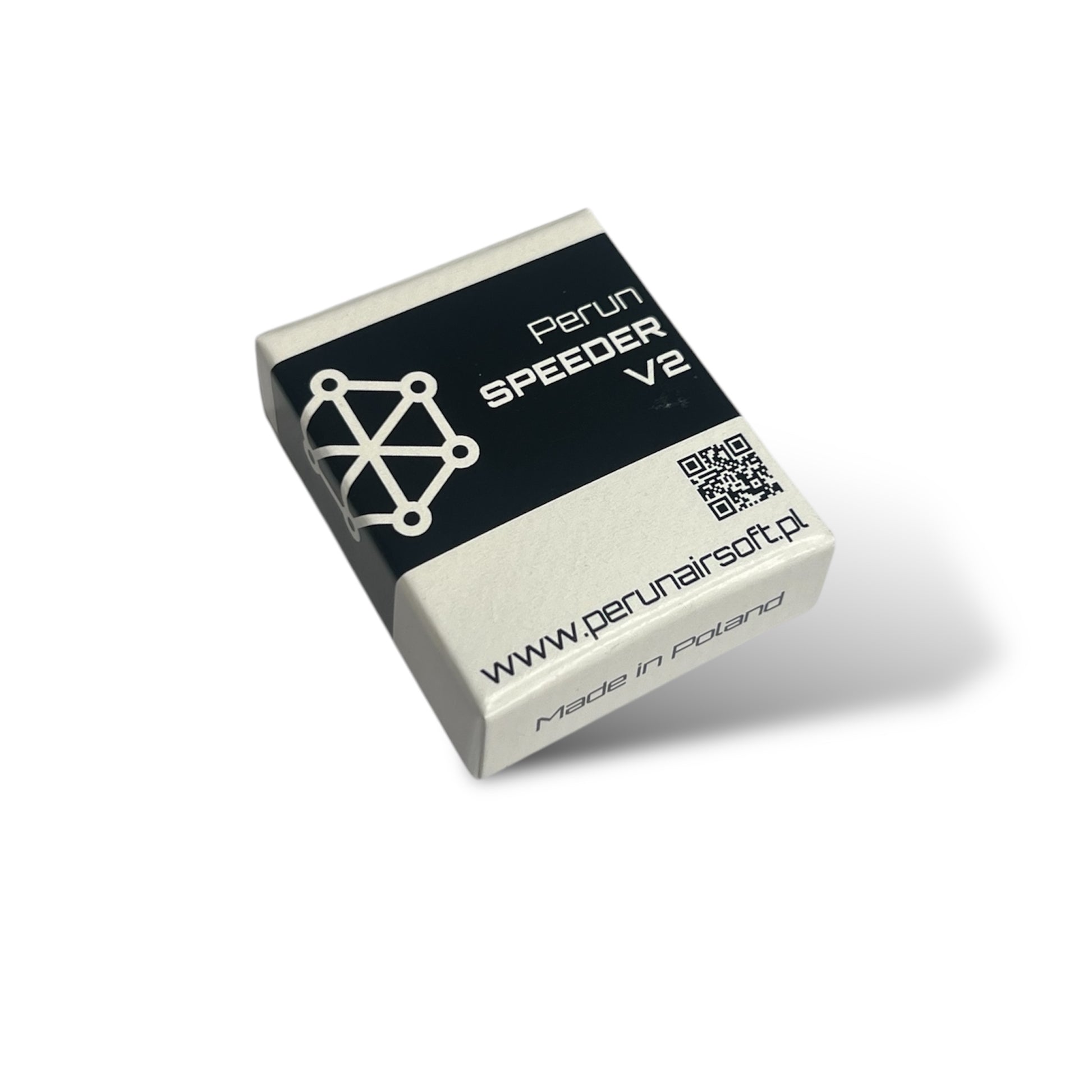

Scan the QR code on the box for full manual.

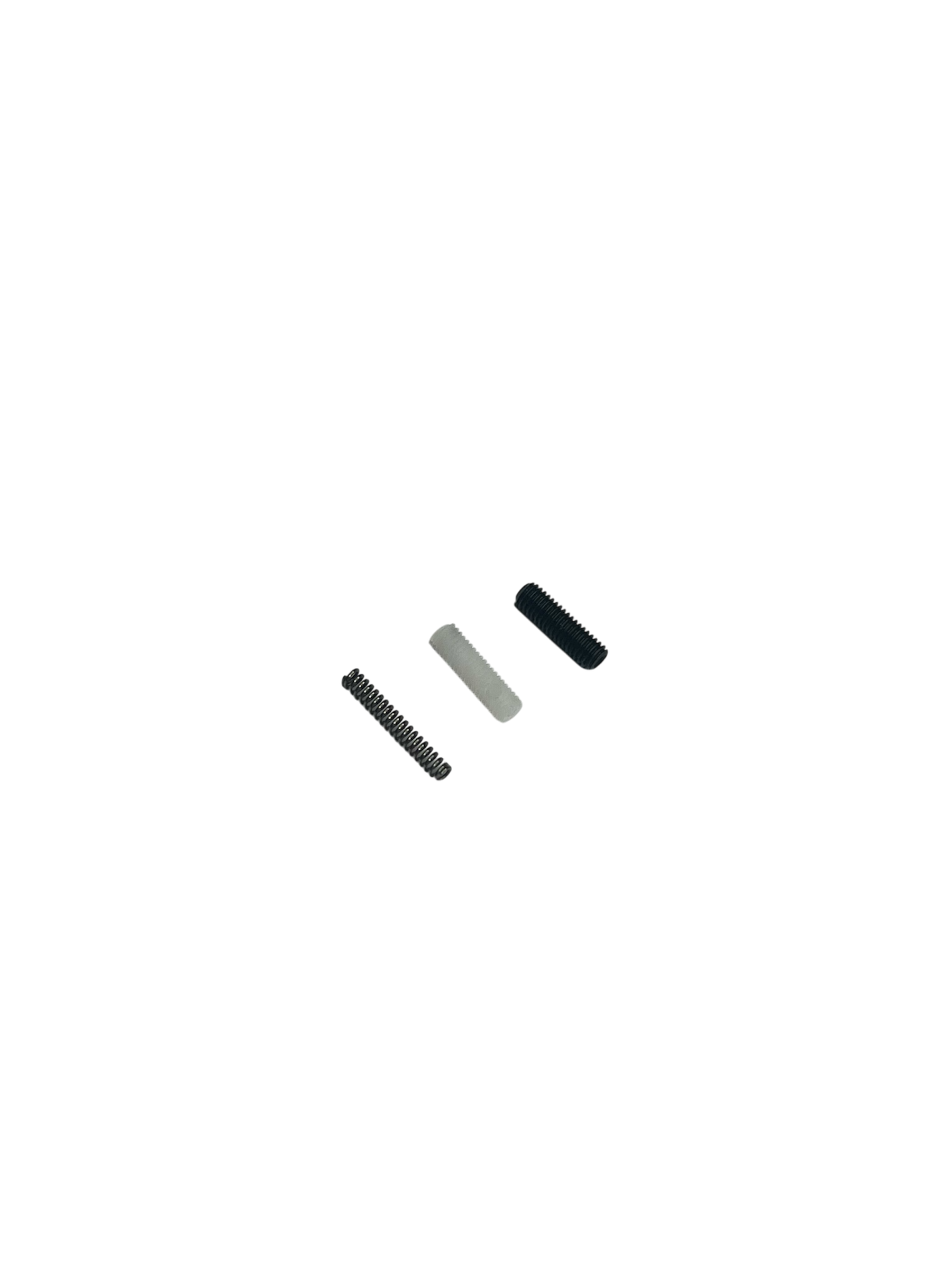

Clicker comes with 2x different power return springs, a softer one and a more stiff one.

The tension of the spring can be adjusted to further fine tune your results.

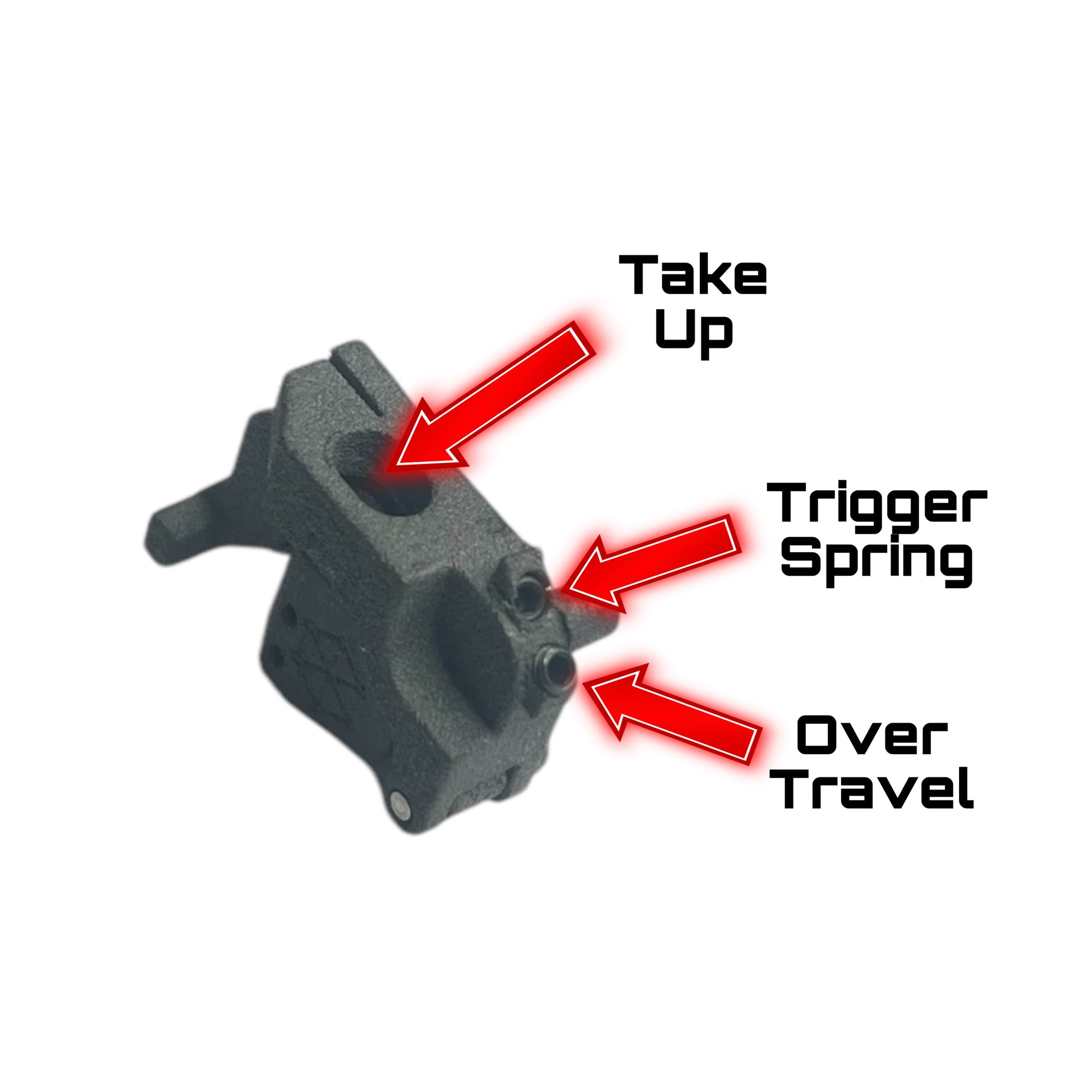

On the unit are 3 adjustment grub screws. The top screw that runs horizontally is responsible for your take up. If you are NOT using the stock trigger return spring, adjust this screw so that it is resting on the top of the trigger at rest.

On the lower portion of the click you will see 2 more adjustment screws. The top one adjusts the tension of the return spring & the most bottom one is to adjust your over travel. To stop your triggers travel after shot break.

INSTALATION

Program level 5 Trigger Sensitivity

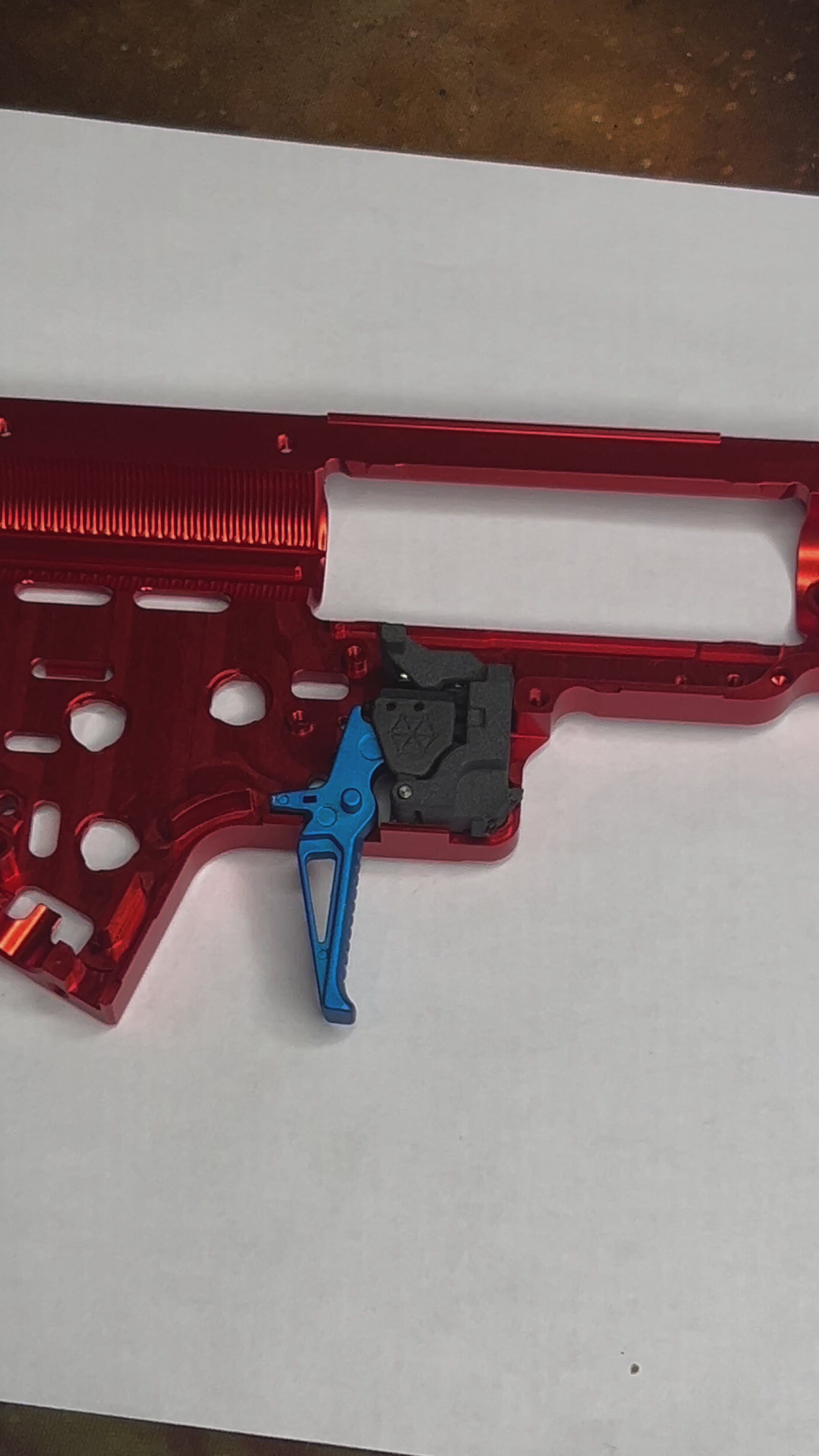

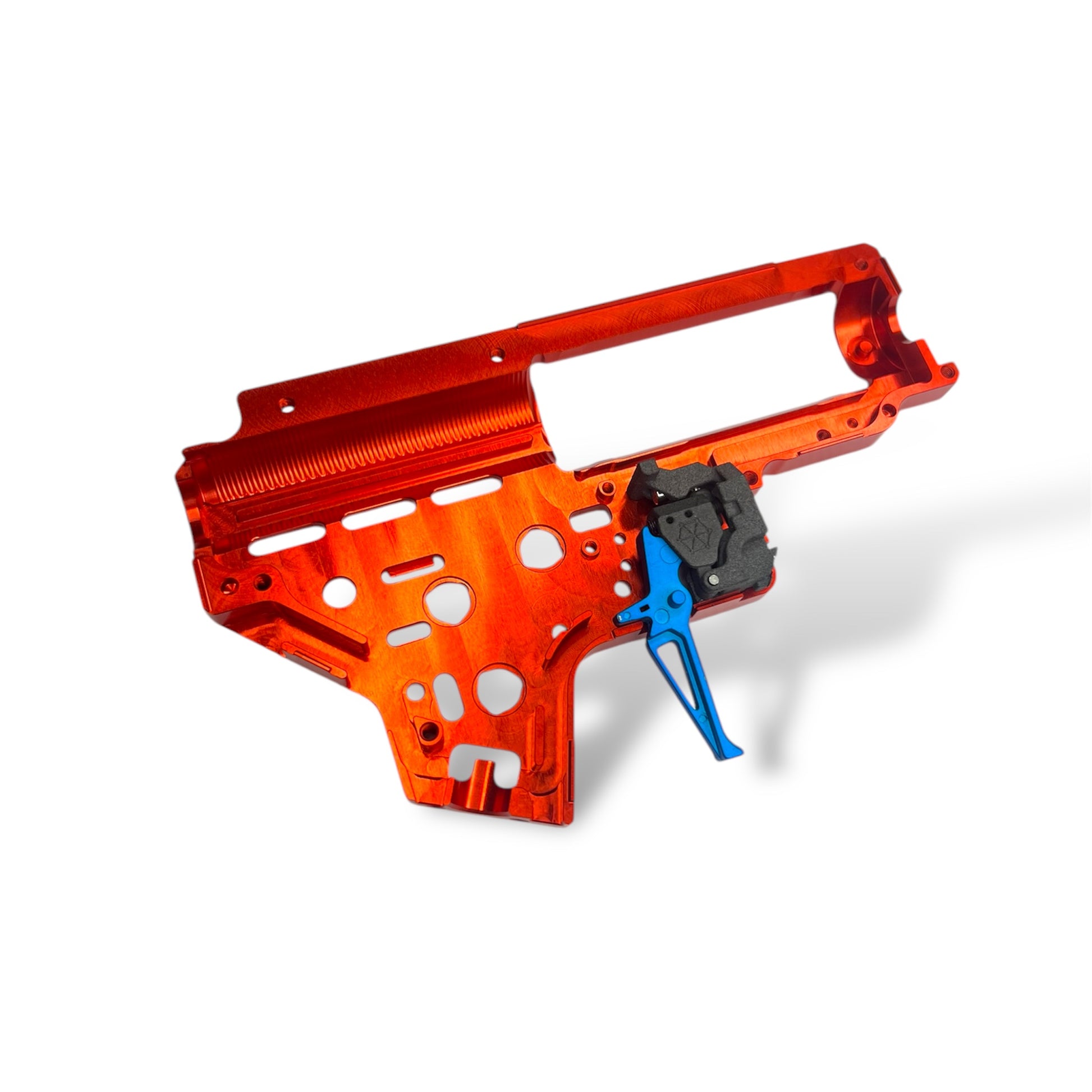

Install your trigger in the gearbox, then seat your Speeder Clicker in the gearbox. There is one leg that sits in the safety lever arm hole in your gearbox. Then adjust your horizontal screw so that it is touching your trigger. Close gearbox and the last 2 screws can be adjusted with the gearbox closed.

You then can adjust your trigger spring tension and lastly tune your over travel. Reference photos for adjustment details.

This must be paired with a Perun Hybrid V2 mosfet. Will not work for any other mosfets.
